HARDWARE FEATURES
-
44 Volt Current Drive .3 amp to 4.2 amp
-
Resistor programmable Currents for each axis. Default 4.2a (3a rms)
-
Full step rate to 10,000/sec (2,560,000 microsteps/sec). Always Micro-steps.
-
Bi-polar 4-wire H-bridge D-Mos Drive
-
Electronic Fusing for each axis
-
Universal Power input 90-265 vac 50-60 Hz
-
Convection and Dual Fan cooling (No heat problems)
-
Extruded aluminum heatsinks
-
Automatic axis idle current reduction (Cool Motors)
-
5 Inputs RC filtered plus hysteresis buffered (No noise)
-
4 Outputs buffered to drive 5v 100ma (relay coils).
-
Outputs electronic fused auto reset (No fuses to replace or damaged parts)
-
+5v 1a user short circuit protected power (Save $). .
-
PC Parallel Port terminated and filtered (Reliable. No Noise Problems)
-
.Electronic braking for motor transients (No blown drives)
-

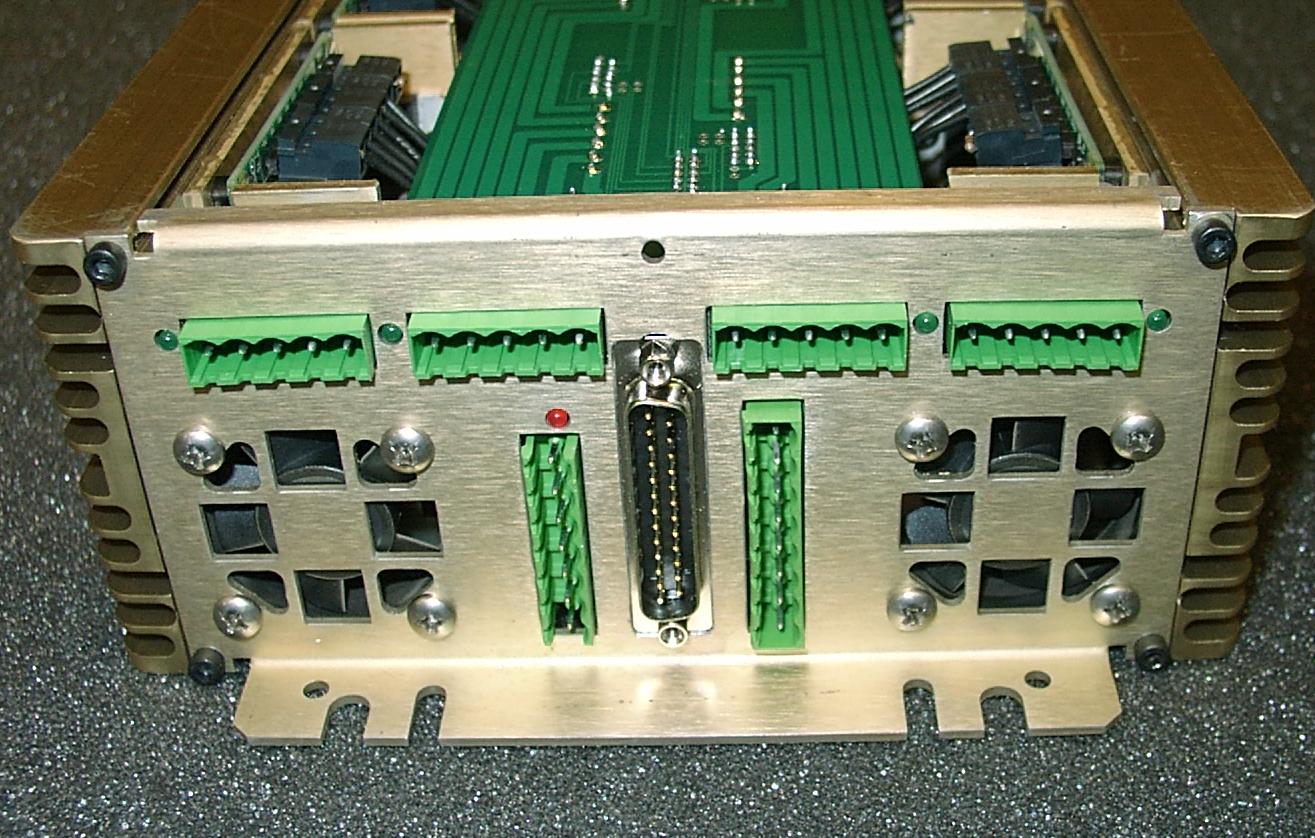

Pluggable Screw terminal connectors (No breakout boxes)
-
One output may be used for a driver enable
-
Outputs all turn off if you unplug PC (Safety)
-
Outputs configurable for Low or High input control
-
LED Indicators for each driver being on and OK
-
LED Indicator for drivers enabled
-

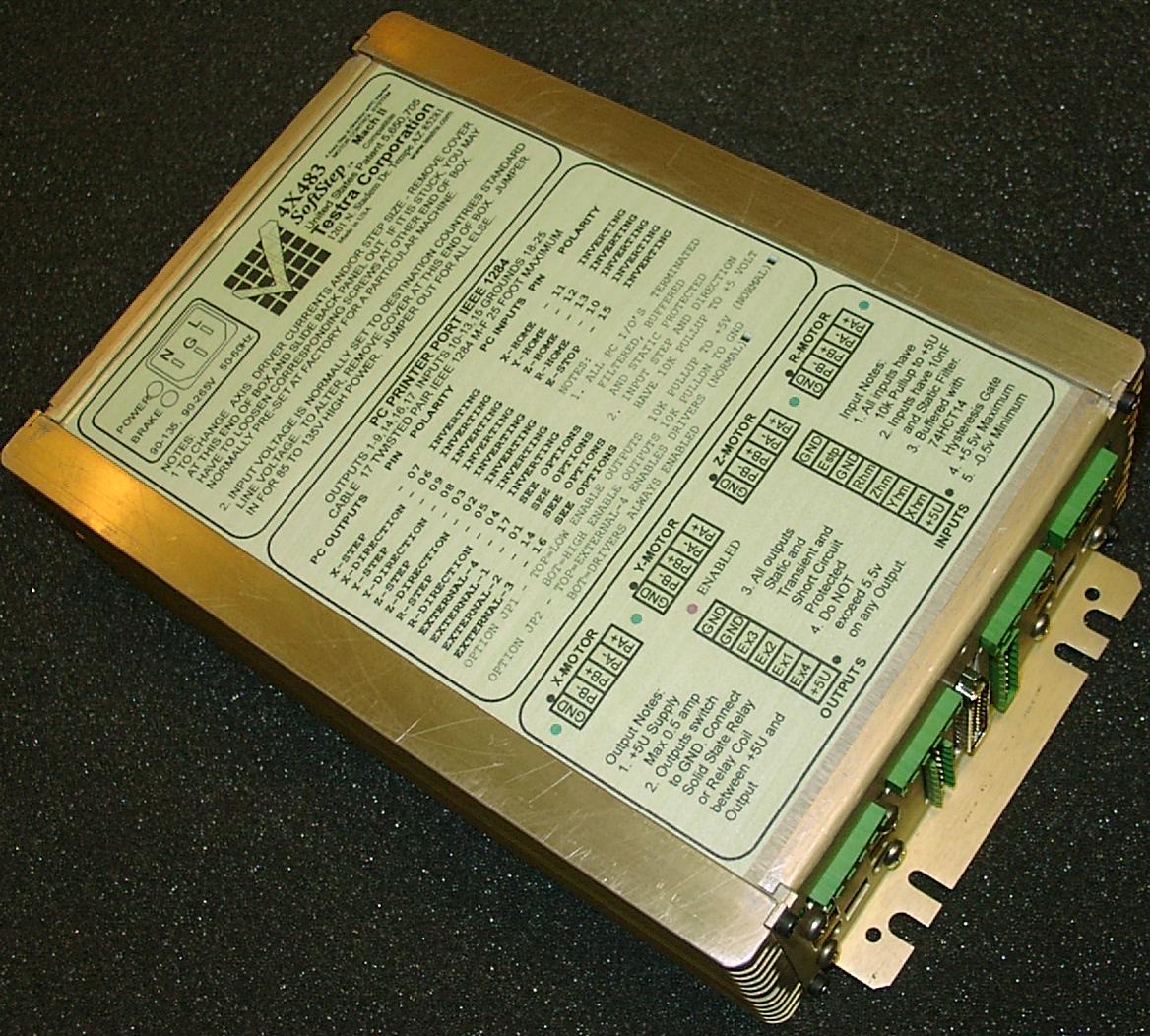

Documentation on system cover
-

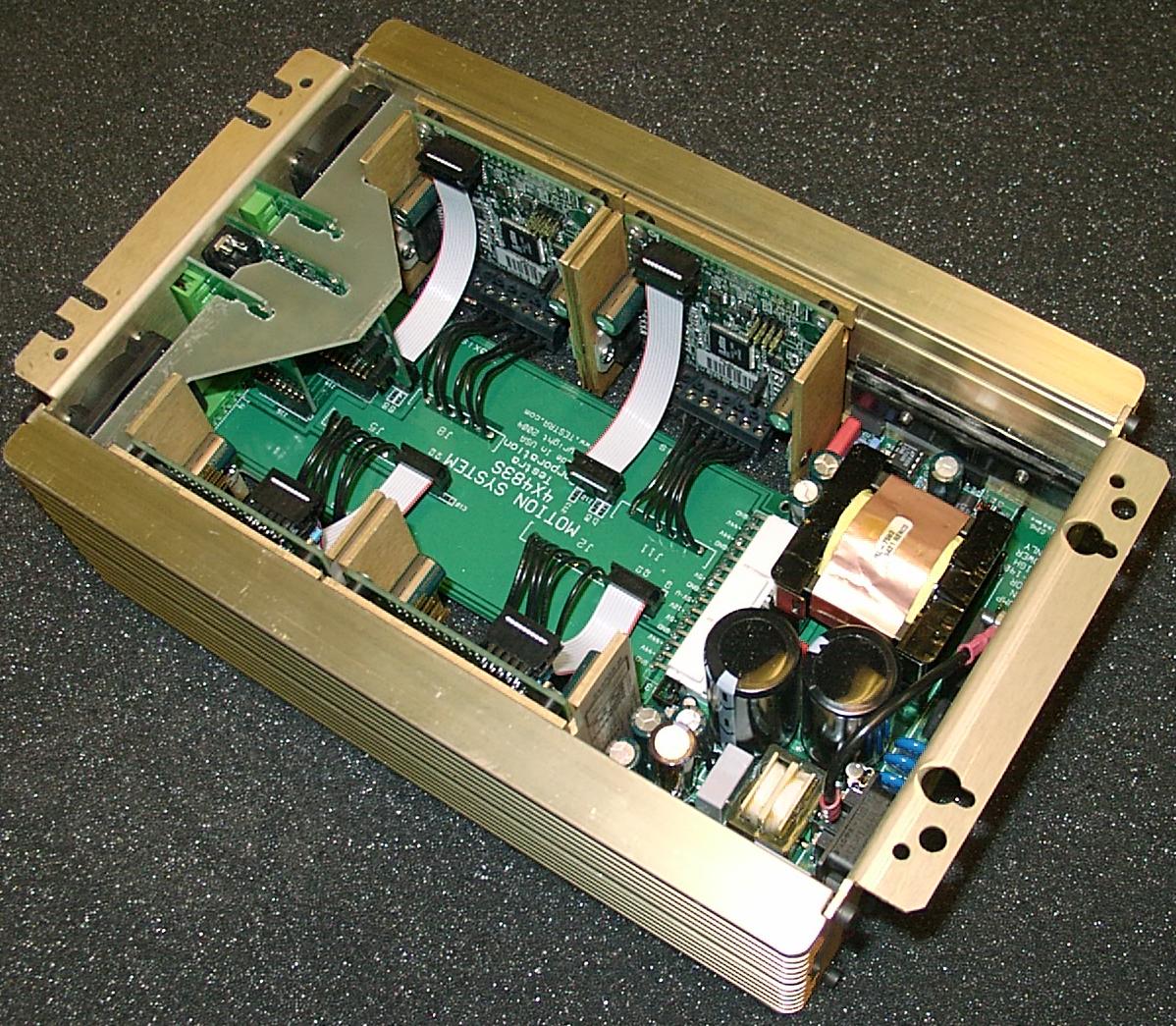

All Four Drivers now on 1 circuit board (Reliability)
|
SOFTWARE COMPATIBILITY
-
Any PC Parallel port step and direction software
-
MACH series 1,2,3
-
Any Step and direction output controller
-
WIN CNC (Need optional adaptor)
SUPPLIED ITEMS
-
Power Cord - 6ft
-
Parallel Port Cable 6ft (IEEE-1284)
-
4 - 5 pin Plugable Screw Terminal Motor Connectors.
-
1 - 7 pin Plugable Screw Terminal Input Connector
-
1 - 8 pin Plugable Screw Terminal Output Connector
-

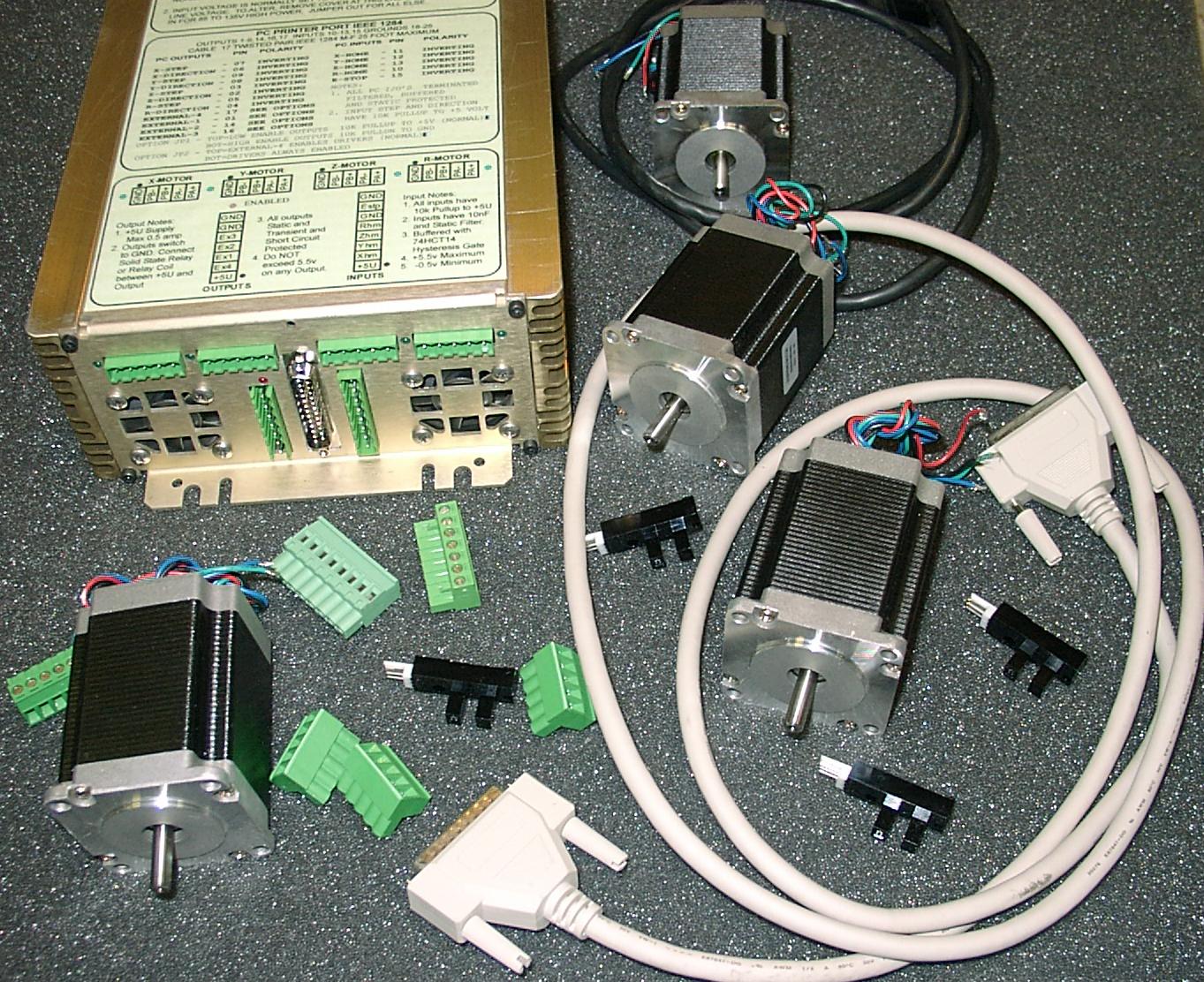

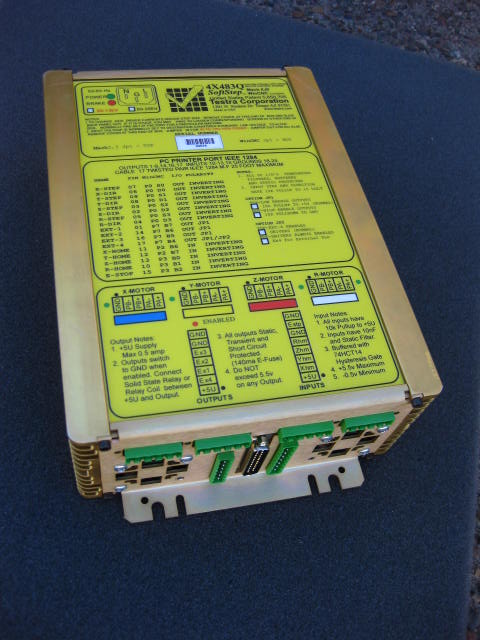

1 - 4x483 4 axes step motor drive system
Optional Items
-
10 foot or 25 foot Parallel port cable (IEEE1284)
-
Opto Limit Switches
-
Step Motors Size 17 thru 34
-
WINCNCA Adaptor (Mounts in PC)
-
Custom Waveform matching to motors to reduce torque ripple and position error for ultra-quiet opertion
|
.....
.....
.....
