FEATURES

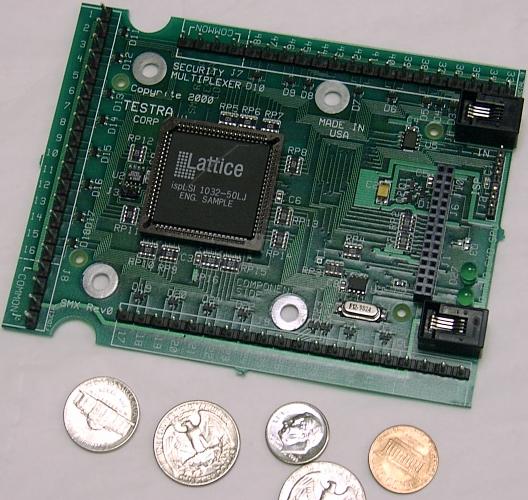

BASIC SMX32/16-S/R/P
-
Power Requirement - Vcc +5v 5% 200ma
-
RS-485 Load - 1/64th
-
32 Inputs 0 to +5v Low<0.8 Hi >2.0
-
16 Outputs TTL 0 to +5v Low <0.4 @ 4ma
-
3 Outputs 0 to 5v Hi >Vcc-0.2 @100ma
-
1 Beeper Output TTL 4khz
-
1 Status Output TTL
-
Baud Rates 9.6 to 115k
-
Unique Electronic Serial Number ID
-
No jumpers, switches or pots
-
Crystal Controlled Timing
-
Doubly Static Protected I/O's
-
Transmit and Receive Led Indicators
-
Lockable NEMA case
-
Modular 4 pin RS-485 connectors (2)
-
Can Daisy Chain RS-485
RELAYS SMX32/16-R/P
-
Two Relays - Form C SPDT 10a 250vac
-
Pluggable Screw terminal connectors
|

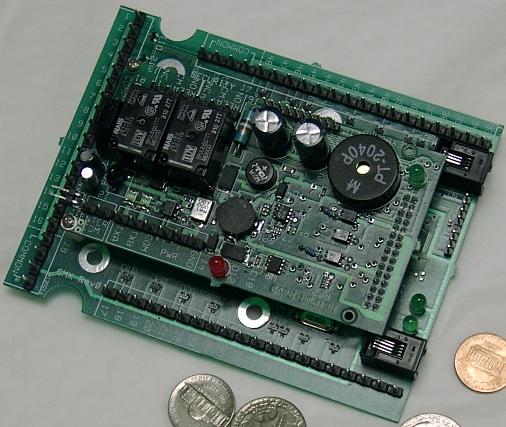

OPTO-ISOLATION SMX32/16-P
-
Power 12-24vac/12-30vdc 2-3w
-
+5v user power can power a SMX32/16-S
-
Automatic Power Fuse Reset
-
RS-485 Super Static protection
-
RS-485 Fusing for Overvoltage
-
RS-485 Automatic Fuse Reset
-
Opto-Reflective Security sensor
-
4khz Maintenance Beeper
-
Auto RS-485 termination
-
RS-485 Status LED
-
User Status LED
-
Plugable Screw Terminal Net Connectors
-
Lightning Protection
RS-485 PROTOCOL
-
Packet System
-
Address select with parity bit (bit9)
-
Device Code + s/n = Address (32b)
-
Checksum on all packets
-
Packet format device dependent
|
..
..
