SECURITY PRODUCTS
TESTRA CORPORATION

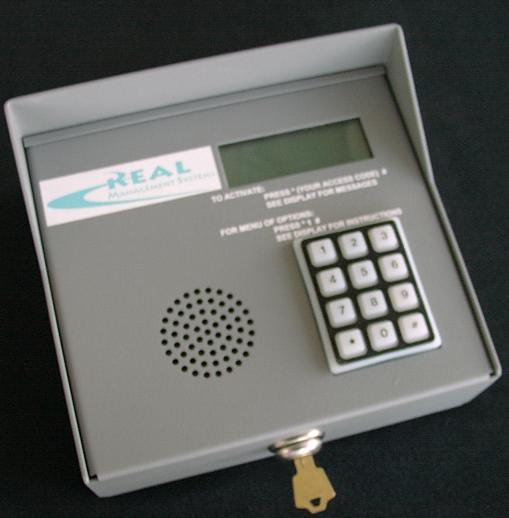

  Photo Entry Keypad   ENTRY - Entry Control Keypad - Used to control access to  secured areas.  Weather proofed aluminum case with UV resistant epoxy  paint.  Key lock for maintenance access.  20 character 4 line wide  temperature range backlit LCD display. 12 key backlit keypad with embossed  rubber keys.  Intercom speaker plus room for video camera.  RS485  optically isolated network with wiring fault and lightning protection Two  relay for gate control and auxiliary use. Beeper for audio feedback to operator.   RS-232  to RS-485 conversion.  Optional Card Swipe reader. Plugable  screw terminal interface connectors.  Infra-red box security detector.

Specifications   Price List

Photo SMX16 Multiplexer
SMX48-R - Multiplex Input Module  - 48 inputs, 2 SPDT 240vac 10a relays.  Optically Isolated RS-485 communication 4000 ft maximum. 12-48 vac/dc input power.  Infra-red box security detector.  Programmable Status indicator.  RS-485 auto termination.  RS-485 status indicator.  Maintenance Beeper. Plugable screw terminal interface connectors. Lockable steel weather proof case with knockouts.
SMX32-R - Multiplex Input Module - 32 Inputs with Relays
SMX16-R - Multiplex Input Module - !6 Inputs with Relays

SMX48 - Multiplex Input Module - 48 inputs , No Relays
SMX32 - Multiplex Input Module - 32 Inputs , No Relays
SMX16 - Multiplex Input Module - !6 Inputs , No Relays

Specifications   Price List

Photo SMX96 Multiplexer
SMX96-R - Multiplex Input Module - 96 inputs , 2 SPDT 240vac 10a relays.  Optically Isolated RS-485 communication 4000 ft maximum. 12-48 vac/dc input  power.  Infra-red box security detector.  Programmable Status indicator.  RS-485 auto termination.  RS-485 status indicator.  Maintenance Beeper. Plugable screw terminal interface connectors.
SMX80-R - Multiplex Input Module - 80 Inputs with Relays
SMX64-R - Multiplex Input Module  - 64 Inputs with Relays

SMX96 - Multiplex Input  Module - 96 inputs , No Relays
SMX80 - Multiplex Input Module - 80 Inputs, No Relays
SMX64 - Multiplex Input Module - 64 Inputs , No Relays

Specifications   Price List
