TESTRA CORPORATION
UL-100 LASER SPECIFICATIONS

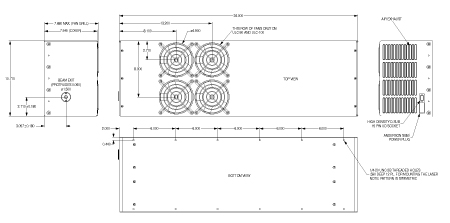

Layout Drawing of ULC-100 Laser



  SPECIFICATIONS
  Rated Power*
  Wavelength
  Power Stability

  M2
  Beam Size (Near Field)
  Beam Divergence (Full angle)
  Beam Ellipticity (Near Field)
  Polarization
  Pointing Stability
  Optical Pulse Rise or Fall Time
  Optical Modulation
  Modulation Signal Type
  Internal Tickle
  Tickle Frequency
  Tickle Pulse Width
  Cooling
  Weight
  Environmental
  Ambient Temperature (Operational)
  Relative Humidity
  Power Requirements
  DC Input Voltage
  RMS Current (CW, Including Fan)
  Inrush Current


ULC-100
100 watt
10.6µ
+/-5% after 15 minutes of
CW operation
1.2+/-.2
4+/-1mm
5+/-1mR
NA
Random
200µR
120+/-40µS
100% up to 5KHz
TTL Compatible
On/Off, Dipswitch Adj.
1-6KHz
0-6µS
Air (built in)
81lbs. (37kg)

50-95°F (10-35°C)
<90% (Non-condensing)

48.0 VDC
36 A
140 A, 150µS



*Output power is guaranteed to exceed this level for a period of 15 months from date of purchase, regardless of use.

   These OEM lasers are components intended for integration into OEM equipment and as such do not comply with the Federal regulations (21 CFR Subchapter J) as administered by the Center for Devices and Radiological Health. Purchaser acknowledges that it is their responsibility to obtain compliance with all CDRH and other applicable domestic and/or internaitonal safety standards. Specifications are subject to change without notice.
